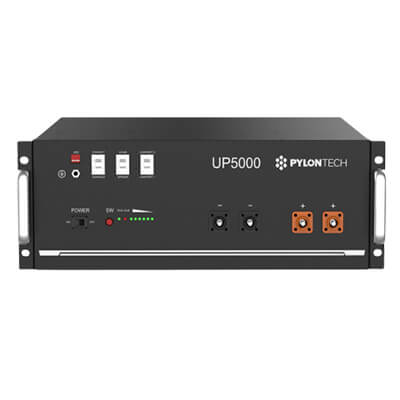

Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V

Description

A new battery in the UP series from Pylontech. The UP5000 is a 48V battery with incredible features to provide a competitive edge in the market.

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 5-year warranty non-extendable
• Weight:42 kg
• Battery Type:Lithium Ion
• Nominal Energy:4800 Wh
• Depth of discharge:95.00 %
• Voltage:48 V
• Continuous Discharge Rate (Normal Use):2400 W
• Maximum Discharge Rate (5 Minutes):3600 W
• Surge Discharge Rate (15 Seconds):4320 W
• Maximum Charge Rate (5 Minutes):3600 W

Get Datasheet here

Important

MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.
