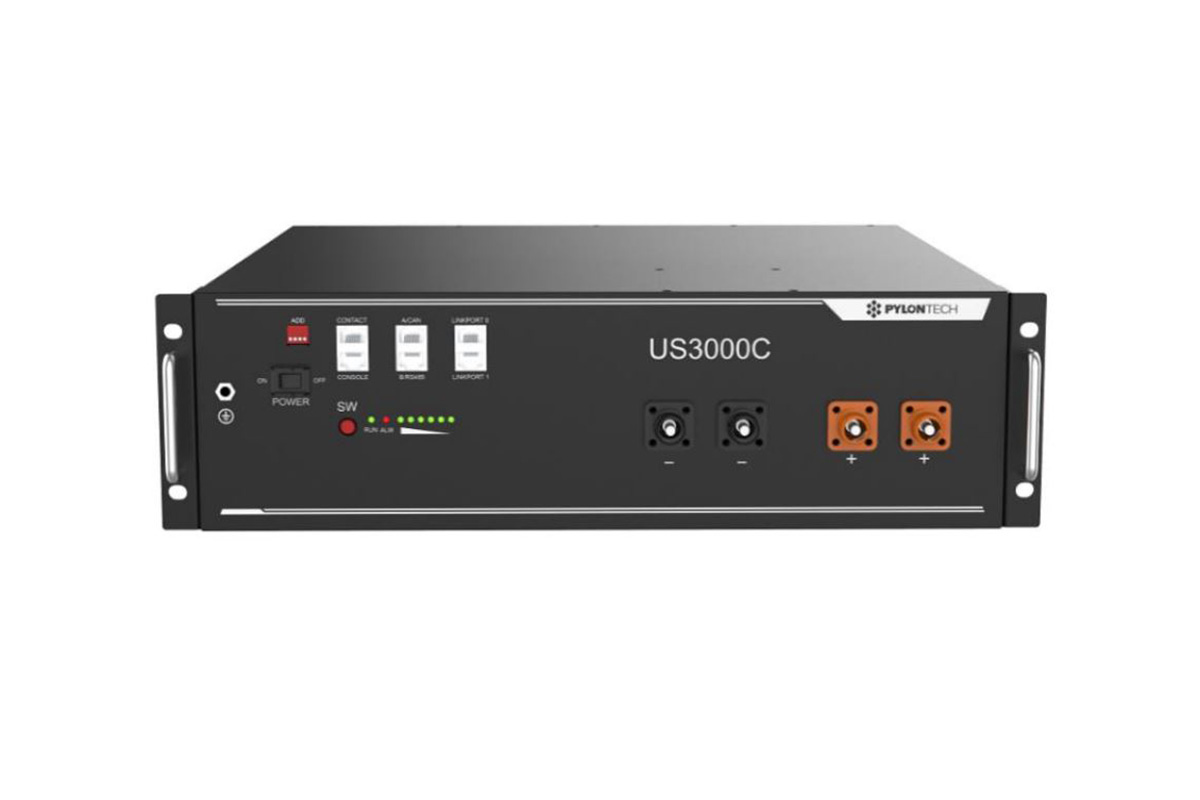

Pylontech US3000C 3.5kWh 48v Lithium Li-Ion Solar Battery ( excl. brackets )
R23995,00
DIP switch has been deployed reversely. ON is down, OFF is UP. If DIP switches need to be 1000 then set it to 1110. MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS. The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.
Nominal Energy:3552 Wh
Depth of discharge:95.00 %
Voltage:48 V
Continuous Discharge Rate (Normal Use):1776 W
Maximum Discharge Rate (5 Minutes):3552 W
Surge Discharge Rate (15 Seconds):4320 W
Maximum Charge Rate (5 Minutes):1776 W
Description
The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abormal temperature, current, voltage, SoC and SoH. The Pylontech US3000C has an incredible DoD of 95%.
ou can now register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to Pylontech Warranty Registration and complete the information in the ‘sign up battery’ page.
Please check battery communication and settings, before connecting grid or PV. A charge voltage over 53.2V will damage the battery.
Please note US2000C and US3000C batteries require different pin out on the communication cable when used with the axpert inverters ( Kodak , Mecer etc). Standard cable used with US2000B and US3000 will not work. Please make sure the correct cable is being used.
